Multinode Dashboard: Wrong used space (used space = 0)

[smokemodel]

Hi!

I’ve installed the Multinode Dashboard yesterday for the first time.
I’ve added several nodes but the used space is wrong for all of them and display “0”:

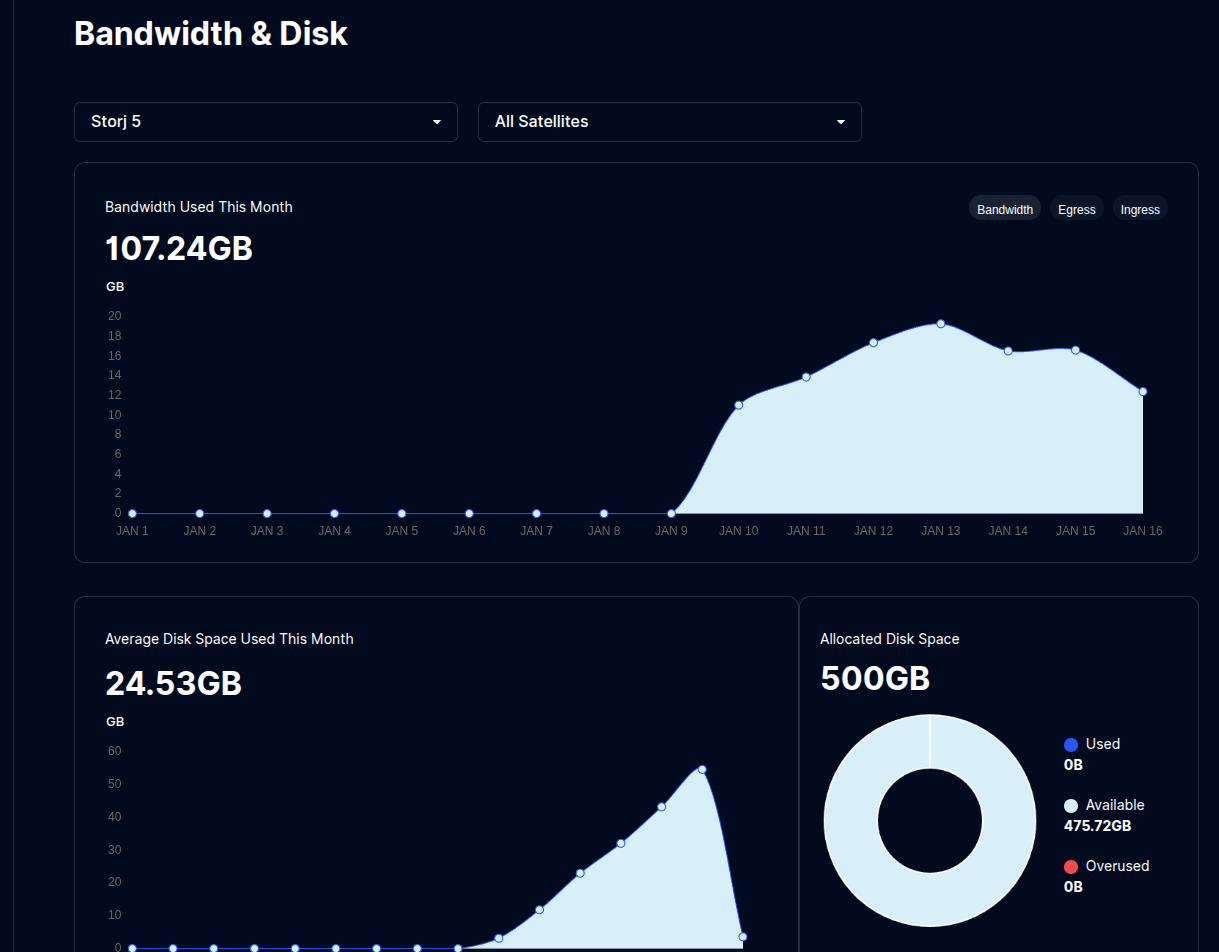

Example with one of the nodes:

Other data seems correct.

I tried to remove the used_space_per_prefix.db file while the node is stopped but it doesn’t fix the issue.

How can I fix it?

Thanks!

[Vadim]

did you used dedicated disk feature?

[Roberto]

I have the same problem, I think it’s due to the fact that the nodes are stuck at version 1.142 and the multinode is the latest

[smokemodel]

I wasn’t aware of this feature.

I’ve found that in the forum:

Dedicated disk functionality

Hi all, I’m wondering if anyone can provide information around dedicated disk / setup, what counts as a dedicated disk / what doesn’t changes needed to the docker run? can be implemented on already running nodes not having dedicated disk enabled ? can dedicated disk be reversed? Pros/Cons … Thanks in advance !

Is there a way to enable it on the Docker-compose side, instead of editing the config.yaml?

[Alexey]

Yes

services:
  Node1:
....
    command: --storage2.monitor.dedicated-disk=true

[andrew2.hart]

If you go to dedicated disk it will always show 0. That is why it was asked

[smokemodel]

Oh ok, thanks. So that’s not what I want lol

[Alexey]

If you use a piecestore backend (it’s enabled by default), then you need not only stop the container, but also remove it, then delete the prefixes database and run the container back.
If you would only stop the container then remove the database, docker may revert your changes when you start the stopped container.

Then you need to wait until the filewalker will finish the scan, it should update all storage metrics.

[smokemodel]

It still doesn’t work for me. I stopped my node, deleted it (sudo docker rm <container_name>) but still doesn’t work.

Maybe my setup is wrong. Here is how I did it:

1. Create the identity

   identity create multinode --difficulty 1


   Then, moved all the content of identity folder to my app folder:

   cp ~/.local/share/storj/identity/multinode/* ~/app/multinode/identity/


2. Setup the multinode

   sudo docker run --rm -e SETUP="true" \
        --user $(id -u):$(id -g)\
        --mount type=bind,source=/home/user/app/multinode/identity,destination=/app/identity \
        --mount type=bind,source=/home/user/app/multinode/config,destination=/app/config \
        --name multinode storjlabs/multinode:latest


3. Run the multinode

   sudo docker run -d --restart unless-stopped --stop-timeout 300 \
   -p 15002:15002 \
   --user $(id -u):$(id -g) \
   --mount type=bind,source=/home/user/app/multinode/identity,destination=/app/identity \
   --mount type=bind,source=/home/user/app/multinode/config,destination=/app/config \
   --name multinode storjlabs/multinode:latest


4. Add a node

   • Get the API key

   sudo docker exec -it storj1 /app/bin/storagenode info --config-dir config --identity-dir identity --log.output stdout


   • Add the node through the GUI

---

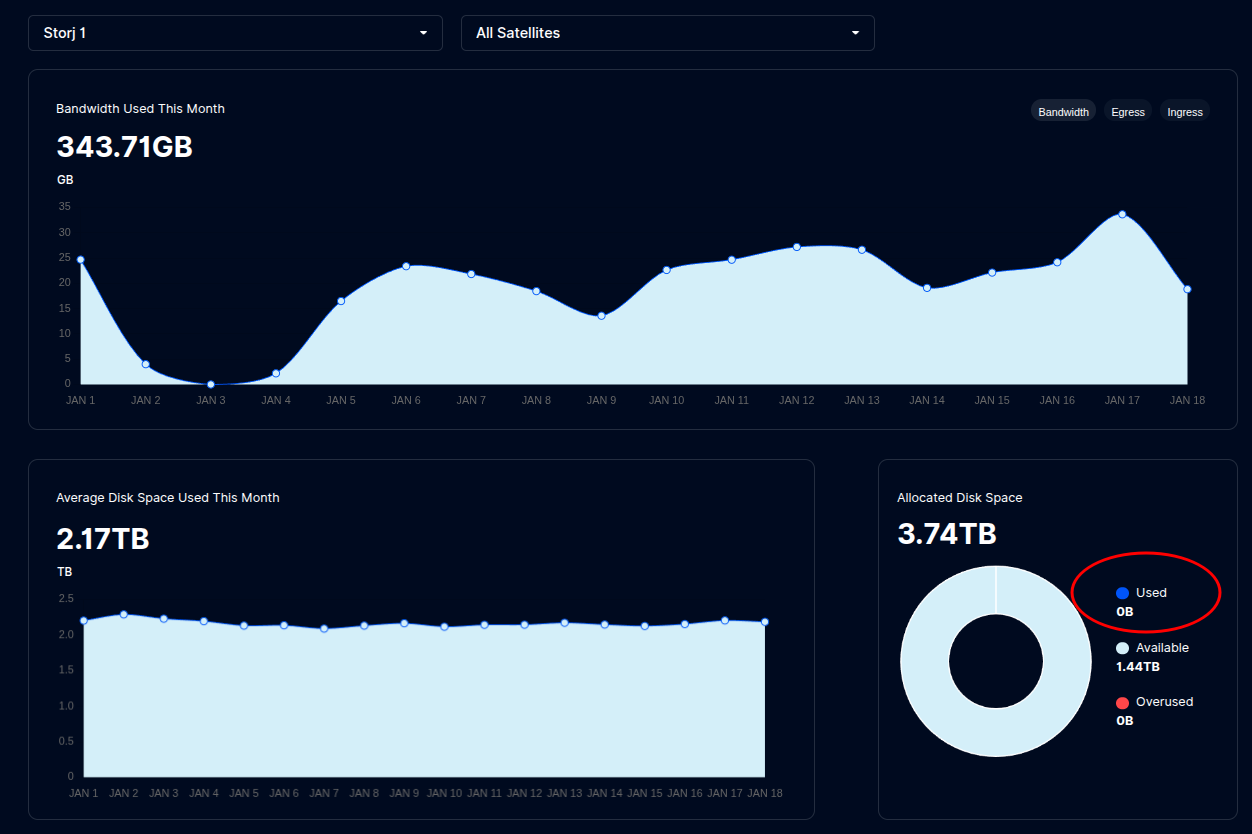

The dashbaord still doesn’t display used space:

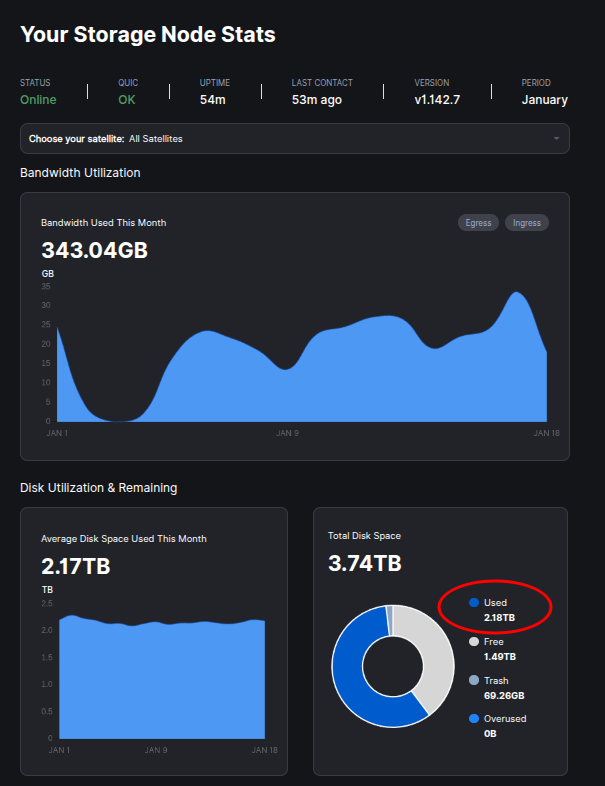

But the individual dashboard is OK:

What is wrong with my setup?

[Roberto]

Multinode Dashboard: Wrong used space (used space = 0)

I have the same problem, I think it’s due to the fact that the nodes are stuck at version 1.142 and the multinode is the latest

[smokemodel]

Oh, sorry, I missed this message.

Thanks!
