Awesome update! Thanks so much!
So with the new update I noticed that I can query new metrics in prometheus, that aren’t from the exporter directly, but processed through netdata:
e.g. netdata_prometheus_storj_payout_currentMonth_currentMonth_average
How can we prevent this? Firstly it results in storing the metrics twice in different namespaces and secondly, netdata is polling the endpoint every 5 seconds, resulting in high cpu usage spikes on the exporter and the storagenode.
Nice Work, are you also going to Update the Dashboard template?
This probably has to do with netdata, there’s no integration with netdata in storj-exporter and I’m not using it so can’t confirm what those netdata_* metrics are.
As to the endpoint polling I recall we discussed this on github issue and happens if you point netdata to health-check storj-exporter port. Currently exporter returns metrics on any url and I will limit it to /metrics to prevent cpu drain on port health-checks etc. That’s up next.
Yep, doing this slowly. So far I have added a boom-table for individual nodes with breakdown of traffic/audit/uptime etc per satellite. Also going to replace payout formulas with the new payout metrics which will be more precise and also add any new metrics if I find them useful.
oh you are not using netdata…
Yes ist has nothing to do with the exporter directly, it is something netdata does by default. I don’t have anything configured about that.
I just figured that most people are using netdata so they will have a similar experience to mine.
I’m not sure it has something to do with health-checks since netdata is actually pulling the exporter’s data.
This is an awesome release! Thank you!
I have a pretty new node running and some information seems to be missing/not showing up… is that because of the node’s age and missing information or did I configure something wrong?
Also, which things exactly fire off every so often? I am running the python file directly for the exporter (how often does that scrape my logs)? I understand the prometheus server forwards this information (how often does that fire) and lastly grafana reads prometheus server (how often does that happen?). And where can I tweak the timings of each of those?
Thanks in advance!
I got rid of netdata polling the exporter endpoint by using docker-compose to connect the exporter to prometheus without exposing any port to the host. This significantly reduced the CPU spikes.
version: '3.7'
services:
storagenode:
image: storjlabs/storagenode:latest
container_name: storagenode1
user: "1000:1000"
restart: unless-stopped
ports:
- 7777:7770
- 14002:14002
- 28967:28967
environment:
- WALLET=
- EMAIL=
- ADDRESS=
- STORAGE=9TB
volumes:
- type: bind
source: /media/STORJ/STORJ
target: /app/config
- type: bind
source: /media/STORJ/identity
target: /app/identity
networks:
- default
stop_grace_period: 300s
deploy:
resources:
limits:
memory: 4096M
storj-exporter:
image: anclrii/storj-exporter:latest
container_name: storj-exporter1
user: "1000:1000"
restart: unless-stopped
environment:
- STORJ_HOST_ADDRESS=storagenode1
- STORJ_API_PORT=14002
- STORJ_EXPORTER_PORT=9651
networks:
- default
prometheus:
image: prom/prometheus
container_name: prometheus
user: "1000:1000"
ports:
- 9090:9090
volumes:
- /sharedfolders/config/prometheus.yml:/etc/prometheus/prometheus.yml
- type: bind
source: /sharedfolders/prometheus
target: /prometheus
restart: unless-stopped
command: --storage.tsdb.retention.time=720d --storage.tsdb.retention.size=30GB --config.file=/etc/prometheus/prometheus.yml --storage.tsdb.path=/prometheus
networks:
- default
networks:
default:
and in promtheus.yml:
- job_name: storagenode
scrape_interval: 30s
scrape_timeout: 20s
metrics_path: /
static_configs:
- targets: ["storj-exporter1:9651"]
labels:
instance: "node1"
For everyone waiting for a dashboard with uptime score, this is mine (hope it works for everyone this way, might need to change the datasource):
Screenshots:
Thanks for this. I’m just getting started using Storj-Exporter (Unfortunately running a docker for each of my 3 nodes - If there’s a better way, please let me know). One comment, and this could just be me, but for “Storage Used” & Ingress/Egress graphs…Is the Storage Sum and I/O labels backwards? Shouldn’t they be on the other sides of the charts?
One exporter container per node is the correct way.
oh lol, you’re right. I never realized that.
That could be carryover from the original dashboard by @greener. Some of those graphs have the y-axes titles backwards.
Not sure why it’s undefined. Metrics for onlineScore:
avg(storj_sat_summary{type=“onlineScore”}) by(instance) * 100
Have you updated Storj-Exporter for all of your node instances?
tnx and here some other words
Hey together,
does anybody know, how to give Alias-Names to the Satellites?
Now it looks like this:
I’d like to give them the “front” names:
How is this possible?
Thanks.
Yeah that would be nice but personally I have no idea how to do that.
It´s easy, you can see the names in web-dashboard:
Then edit your fav. grafana panel and add a override with field name:

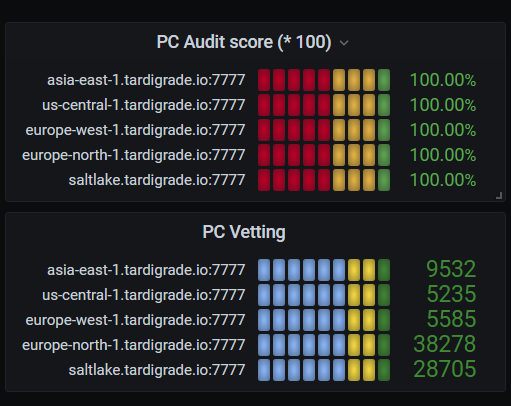

Managed to change the original JSON file to display URL instead of Sat ID:
I just replace “legendFormat”: “{{satellite}}” with “legendFormat”: “{{url}}”
