Prometheus Storj-Exporter

kevink · November 19, 2020, 8:23am

Well, you got it working, that’s all that matters

greener · November 20, 2020, 11:41am

I published the updated Storj-Exporter-Boom-Table.json` here GitHub - anclrii/Storj-Exporter-dashboard: Storj-exporter Grafana dashboard.

This is the one I’m currently using and here’s some recent changes I made:

Updated to Grafana 7+
Cleaner summary views for multiple nodes
Updated to use new metrics recently added to exporter, payout numbers come from api now and not calculated
Node summary table now includes Held amount, Version, Uptime, Online, UpToDate, Suspended, Disqualified status etc
Node details moved to a satellite summary table and more fields exposed by satellite
Templated datasource as a variable so it should pick up datasource automatically upon import if you have just one.
Unified colours a bit and removed some excessive overlapping graphs for rate/sum as they worked out to be confusing.
Added a shameless panel with my wallet qr code

As always any feedback is very welcome.

maxsch · November 20, 2020, 6:47pm

Very nice work!

So far I’ve found two small bugs
At Disk free: You have forgot the trash space.
And at DQ and SU in Null Handling (Null Value): There is a “2” instead of “No data”

greener · November 20, 2020, 7:15pm

Thanks, so if I understand this correctly you would prefer Disk free to show Disk free + Disk trash?
Currently Disk total = Disk used + Disk free where Disk trash is part of Disk used and not part of Disk free. This is how api reports it and I think it makes sense because trash can not be used as free space until it’s cleared. What do you think?

I fixed the Null Value now and will be there in next update (Comparing master...dev · anclrii/Storj-Exporter-dashboard · GitHub)

maxsch · November 20, 2020, 7:43pm

I mean the trash is not available as free Disk for some time…
Shouldn’t it then be for "Disk free" = "Disk available - Disk used - Disk trash" ?

greener · November 21, 2020, 2:07pm

Right, looking at sources here and here

// SpaceUsedForPiecesAndTrash returns the total space used by both active
// pieces and the trash directory.

Disk used(usedSpace) already includes space used by trash, so "Disk free" = "Disk available - Disk used - Disk trash" would subtract trash twice. Can you share an example where numbers don’t match? Could be an error in api but looks fine on my node.

maxsch · November 23, 2020, 9:26am

@greener
You are totally right, I didn’t notice that “Disk used” contains the trash.
Sorry, this was my mistake…

zeddan81 · November 23, 2020, 12:06pm

I have problem to got storj exporter to start at one of my nodes after update of storj-exporter docker container. The diffrence is that node has been disqualified on one satellite. I got this in my log from the container.

Blockquote
Traceback (most recent call last):
File “./storj-exporter.py”, line 191, in
REGISTRY.register(StorjCollector())
File “/usr/local/lib/python3.7/site-packages/prometheus_client/registry.py”, line 26, in register
names = self._get_names(collector)
File “/usr/local/lib/python3.7/site-packages/prometheus_client/registry.py”, line 66, in _get_names
for metric in desc_func():
File “./storj-exporter.py”, line 187, in collect
yield from self.add_sat_metrics()
File “./storj-exporter.py”, line 119, in add_sat_metrics
yield from self.add_extended_sat_metrics(sat)
File “./storj-exporter.py”, line 123, in add_extended_sat_metrics
self.get_sat_data(sat)
File “./storj-exporter.py”, line 33, in get_sat_data
sat[‘sat_data’].update(self.sum_sat_daily_keys(sat[‘sat_data’], ‘bandwidthDaily’, [‘repair’,‘audit’,‘usage’], ‘egress’))
File “./storj-exporter.py”, line 39, in sum_sat_daily_keys
for day in daily_data_dict[daily_data_key]:
TypeError: ‘NoneType’ object is not iterable
Traceback (most recent call last):
File “./storj-exporter.py”, line 191, in
REGISTRY.register(StorjCollector())
File “/usr/local/lib/python3.7/site-packages/prometheus_client/registry.py”, line 26, in register
names = self._get_names(collector)
File “/usr/local/lib/python3.7/site-packages/prometheus_client/registry.py”, line 66, in _get_names
for metric in desc_func():
File “./storj-exporter.py”, line 187, in collect
yield from self.add_sat_metrics()
File “./storj-exporter.py”, line 119, in add_sat_metrics
yield from self.add_extended_sat_metrics(sat)
File “./storj-exporter.py”, line 123, in add_extended_sat_metrics
self.get_sat_data(sat)
File “./storj-exporter.py”, line 33, in get_sat_data
sat[‘sat_data’].update(self.sum_sat_daily_keys(sat[‘sat_data’], ‘bandwidthDaily’, [‘repair’,‘audit’,‘usage’], ‘egress’))
File “./storj-exporter.py”, line 39, in sum_sat_daily_keys
for day in daily_data_dict[daily_data_key]:
TypeError: ‘NoneType’ object is not iterable

greener · November 23, 2020, 12:25pm

Thanks, I’ll fix this, tracking in https://github.com/anclrii/Storj-Exporter/issues/41

Can you share the output of curl 'http://localhost:14007/api/sno/satellite/<sat id here>' | jq for the desqualified satellite?

mus6677 · November 23, 2020, 12:26pm

I also got storj-exporter error on one node that has performed graceful exit on 3 satellites.
Other nodes has no error when running new storj-exporter:

F:\prometheus> C:\Users\musah\AppData\Local\Programs\Python\Python38-32\python.exe '.\storj-exporter.py' Traceback (most recent call last): File ".\storj-exporter.py", line 191, in <module> REGISTRY.register(StorjCollector()) File "C:\Users\musah\AppData\Local\Programs\Python\Python38-32\lib\site-packages\prometheus_client\registry.py", line 26, in register names = self._get_names(collector) File "C:\Users\musah\AppData\Local\Programs\Python\Python38-32\lib\site-packages\prometheus_client\registry.py", line 66, in _get_names for metric in desc_func(): File ".\storj-exporter.py", line 187, in collect yield from self.add_sat_metrics() File ".\storj-exporter.py", line 119, in add_sat_metrics yield from self.add_extended_sat_metrics(sat) File ".\storj-exporter.py", line 123, in add_extended_sat_metrics self.get_sat_data(sat) File ".\storj-exporter.py", line 33, in get_sat_data sat['sat_data'].update(self.sum_sat_daily_keys(sat['sat_data'], 'bandwidthDaily', ['repair','audit','usage'], 'egress')) File ".\storj-exporter.py", line 39, in sum_sat_daily_keys for day in daily_data_dict[daily_data_key]: TypeError: 'NoneType' object is not iterable

one of graceful exited sat
http://127.0.0.1:14002/api/sno/satellite/121RTSDpyNZVcEU84Ticf2L1ntiuUimbWgfATz21tuvgk3vzoA6
{"id":"121RTSDpyNZVcEU84Ticf2L1ntiuUimbWgfATz21tuvgk3vzoA6","storageDaily":null,"bandwidthDaily":null,"storageSummary":0,"bandwidthSummary":0,"egressSummary":0,"ingressSummary":0,"currentStorageUsed":0,"audit":{"totalCount":9532,"successCount":9532,"alpha":19.99999999999995,"beta":0,"unknownAlpha":1,"unknownBeta":0,"score":1,"unknownScore":1},"uptime":{"totalCount":19495,"successCount":19423,"alpha":0,"beta":0,"unknownAlpha":0,"unknownBeta":0,"score":0,"unknownScore":0},"onlineScore":1,"priceModel":{"EgressBandwidth":2000,"RepairBandwidth":1000,"AuditBandwidth":1000,"DiskSpace":150},"nodeJoinedAt":"2019-10-05T02:20:08.037764Z"}

zeddan81 · November 23, 2020, 12:58pm

Blockquote
Xxxx@Server:~$ curl http://localhost:14002/api/sno/satellite/1wFTAgs9DP5RSnCqKV1eLf6N9wtk4EAtmN5DpSxcs8EjT69tGE|jq
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 2358 0 2358 0 0 143k 0 --:–:-- --:–:-- --:–:-- 143k
{
“id”: “1wFTAgs9DP5RSnCqKV1eLf6N9wtk4EAtmN5DpSxcs8EjT69tGE”,
“storageDaily”: [
{
“atRestTotal”: 23818283351137.484,
“intervalStart”: “2020-11-01T00:00:00Z” },
{
“atRestTotal”: 23228610790976.977,
“intervalStart”: “2020-11-02T00:00:00Z”
},
{
“atRestTotal”: 22830749835839.58,
“intervalStart”: “2020-11-03T00:00:00Z”
},
{
“atRestTotal”: 21310279948438.28,
“intervalStart”: “2020-11-04T00:00:00Z”
},
{
“atRestTotal”: 23432204660848.97,
“intervalStart”: “2020-11-05T00:00:00Z”
},
{
“atRestTotal”: 23133306287232.496,
“intervalStart”: “2020-11-06T00:00:00Z”
},
{
“atRestTotal”: 22716632642664.688,
“intervalStart”: “2020-11-07T00:00:00Z”
},
{
“atRestTotal”: 22714351856842.47,
“intervalStart”: “2020-11-08T00:00:00Z”
},
{
“atRestTotal”: 20677663283168.117,
“intervalStart”: “2020-11-09T00:00:00Z”
},
{
“atRestTotal”: 23313113034491.742,
“intervalStart”: “2020-11-10T00:00:00Z”
},
{
“atRestTotal”: 21111166099020.15,
“intervalStart”: “2020-11-11T00:00:00Z”
},
{
“atRestTotal”: 23134595568077.32,
“intervalStart”: “2020-11-12T00:00:00Z”
},
{
“atRestTotal”: 22163097618727.99,
“intervalStart”: “2020-11-13T00:00:00Z”
},
{
“atRestTotal”: 22093652658135.992,
“intervalStart”: “2020-11-14T00:00:00Z”
},
{
“atRestTotal”: 22030571399887.812,
“intervalStart”: “2020-11-15T00:00:00Z”
},
{
“atRestTotal”: 21172572356985.492,
“intervalStart”: “2020-11-16T00:00:00Z”
},
{
“atRestTotal”: 23106003702273.14,
“intervalStart”: “2020-11-17T00:00:00Z”
},
{
“atRestTotal”: 21187979391157.453,
“intervalStart”: “2020-11-18T00:00:00Z”
},
{
“atRestTotal”: 22530189184044.7,
“intervalStart”: “2020-11-19T00:00:00Z”
},
{
“atRestTotal”: 20405503146216.14,
“intervalStart”: “2020-11-20T00:00:00Z”
},
{
“atRestTotal”: 22044231957044.04,
“intervalStart”: “2020-11-21T00:00:00Z”
},
{
“atRestTotal”: 21594040167995.887,
“intervalStart”: “2020-11-22T00:00:00Z”
},
{
“atRestTotal”: 1866421189991.8809,
“intervalStart”: “2020-11-23T00:00:00Z”
}
],
“bandwidthDaily”: null,
“storageSummary”: 491615220131198.75,
“bandwidthSummary”: 0,
“egressSummary”: 0,
“ingressSummary”: 0,
“currentStorageUsed”: 0,
“audit”: {
“totalCount”: 16902,
“successCount”: 16868,
“alpha”: 11.966608,
“beta”: 8.033391,
“unknownAlpha”: 20,
“unknownBeta”: 0,
“score”: 0.5983304299165214,
“unknownScore”: 1
},
“uptime”: {
“totalCount”: 24532,
“successCount”: 24531,
“alpha”: 0,
“beta”: 0,
“unknownAlpha”: 0,
“unknownBeta”: 0,
“score”: 0,
“unknownScore”: 0
},
“onlineScore”: 1,
“priceModel”: {
“EgressBandwidth”: 2000,
“RepairBandwidth”: 1000,
“AuditBandwidth”: 1000,
“DiskSpace”: 150
},
“nodeJoinedAt”: “2020-02-11T17:30:52.381242Z”
}

greener · November 23, 2020, 2:52pm

This should work https://github.com/anclrii/Storj-Exporter/commit/d16049b75b53f3e91d143af090b83b808ac33199
Can you test with anclrii/storj-exporter:dev docker image?

mus6677 · November 23, 2020, 3:00pm

this work on my node with 3 sat graceful exited

zeddan81 · November 23, 2020, 3:22pm

Works for me too. Good and fast work!

greener · November 24, 2020, 5:12pm

That’s exporter v1.0.2 published and available in anclrii/storj-exporter:latest image.

fix handling null daily lists returned by storj api
implement HTTPRequestHandler with /status endpoint

This should prevent issues seen on first day of the month and also on disqualified/GE nodes.

zolbarna · November 25, 2020, 6:33am

Thanks for you amazing work.

Can’t tell you how much I learnt until I sat up the full env, but worth the job

zolbarna · November 27, 2020, 6:05pm

Can anyone explain me what is the difference between the Online Score vs Audit score?

Yeah I know. Low values. It took few days until I tracked down what is wrong with my 2nd hdd, because it randomly sent an error msg to the dmesg. (Spoiler alert: low power from the RPI 4).

Also. I wasn’t able to find out by myself what does it mean in the logs:

itbrigadier · November 28, 2020, 2:13pm

Hey.
Thanks for the dashboard

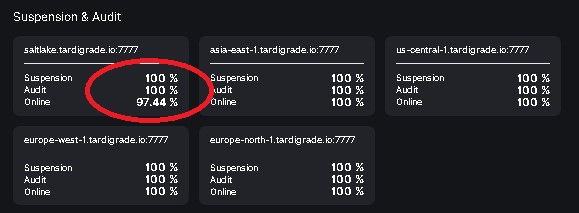

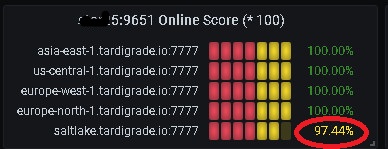

Found inconsistency in the Uptime column for satellites.
Attached screenshots.
2020-11-28_104644

kevink · November 28, 2020, 4:09pm

I reported that issue on github 6 days ago: https://github.com/anclrii/Storj-Exporter-dashboard/issues/11
(You can fix it yourself until he releases a new version)

itbrigadier · November 28, 2020, 9:33pm

Thanks, corrected.
