Post pictures of your storagenode rig(s)

dominik · July 21, 2020, 2:40pm

Haha not direcly this is a Ethernetcable shipped together with my old wifi router

deathlessdd · July 21, 2020, 3:04pm

This is one of my newest nodes had my rpi 4 laying around after my test projects put it to work.

Odmin · July 21, 2020, 3:07pm

I used custom backpanes with LSI SAS expanders, have a 3 lines of HDD, eatch lines is have 20 HDD. It can be SAS/SATA. Two HBA controlles serving this lines, I using ZFS on this setup. Also this chassis have possibility to expand with another JBOD like this.

Didier · July 21, 2020, 5:48pm

Hi all.

Compared to what I see around here, a basic setup of mine, but I’m just getting started.

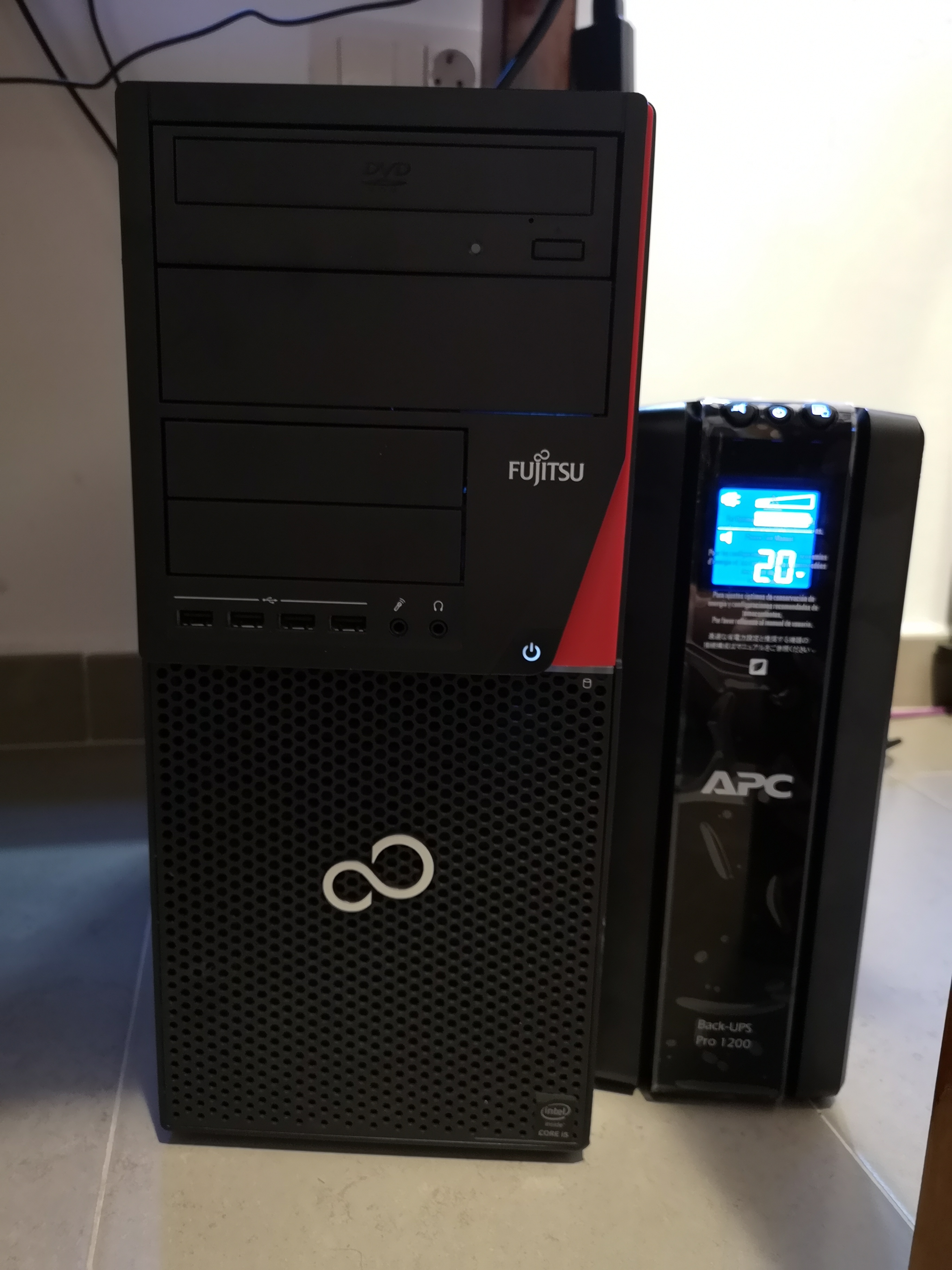

A PC with an I5 4590 processor, 16 Gb of Ram memory and two nodes, one 1.8TB and the other 12.6TB, complemented by a 1200VA UPS.

Regards.

Alexey · July 23, 2020, 9:20pm

20 posts were split to a new topic: I just picked up a few New (New Old Stock) UPS

BrightSilence · July 21, 2020, 7:50pm

Don’t tease me with that peel man…

Cancelor · July 22, 2020, 8:47am

Nice, I’ve been keeping an eye on eBay for a Dell r515 or 510 (for the 12 x 3.5" bays) so I’m very jealous!

I luv Dell stuff in general, they just look nice! lol

xopok · July 22, 2020, 9:24pm

Specifically for @Vadim: WD Elements 14TB now on sale for 235 EUR

Vadim · July 22, 2020, 9:49pm

Thanks, I just got 4x 10TB Toshiba Enterprice HDD for 190 eur/pcs with delivery on local market.

Pavmer · July 23, 2020, 2:20pm

is it possible to discuss batteries in a separate thread?
Thank.

Alexey · July 23, 2020, 9:21pm

Moved to a separate thread.
Perhaps we should move all discussions from this thread to a separate ones to keep it clear with the title

joesmoe · July 25, 2020, 2:10pm

I think that’s a good idea.

Vadim · July 26, 2020, 5:55pm

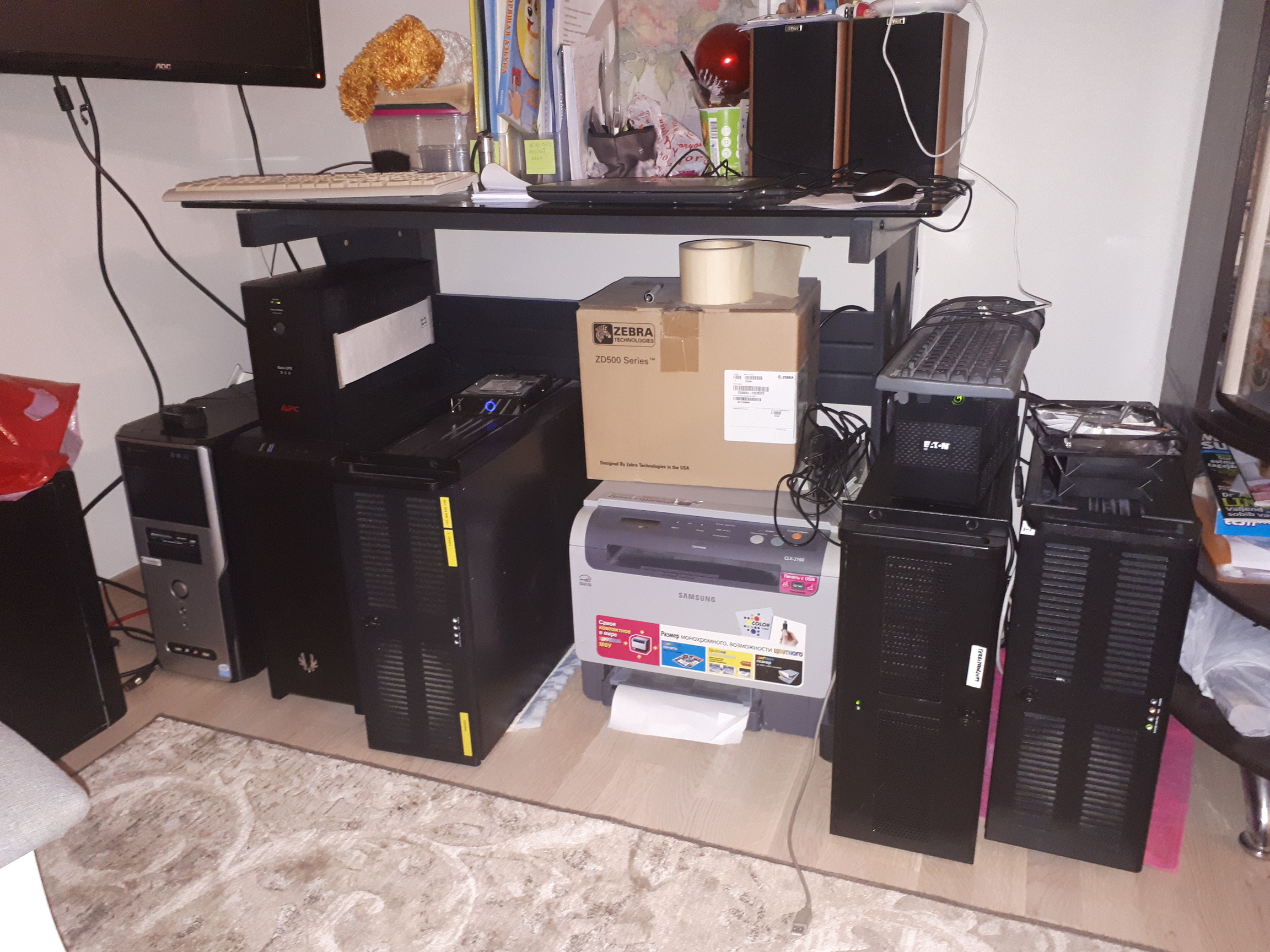

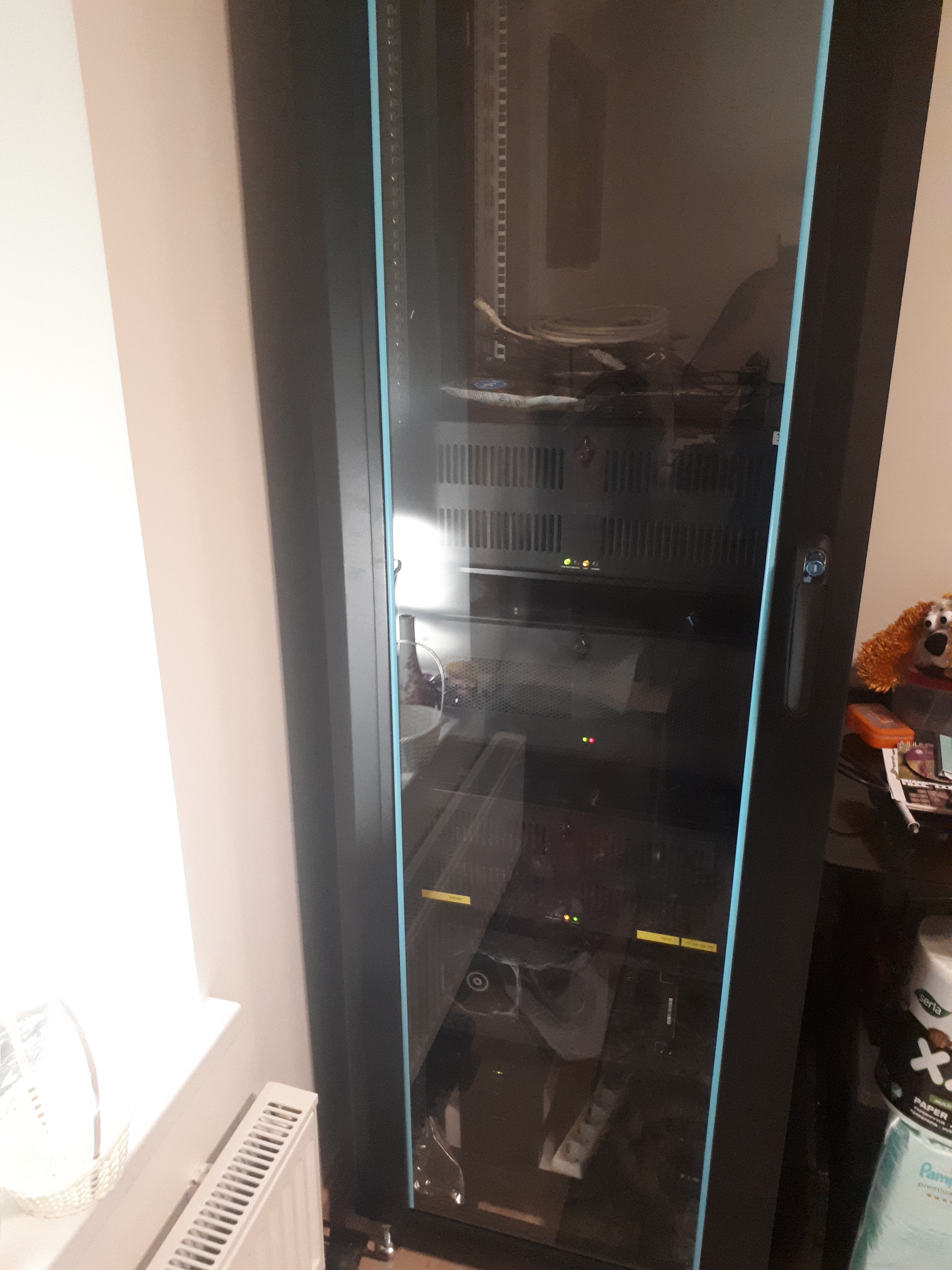

Upgraded from this

To

Thanks all for ideas.

Additional added 35TB
All farm is now 111 TB
300-320W consumprion
And now i have space for aditional about 3x 4U rackmount cases. for futura use.

and need some aditional collers to navigate cool air inside and make it silaent way.

mrkeyboardcommando · July 26, 2020, 6:26pm

nice cabinet!

Way cleaner than i have…cables and such.

unrealSpeedy · July 26, 2020, 7:06pm

Wow nice!
All 111TB at one /24 IP-net?

Vadim · July 26, 2020, 7:08pm

2 ISP with with own IP

Krey · July 27, 2020, 4:22am

What’s behind the door?

twl · July 27, 2020, 5:27am

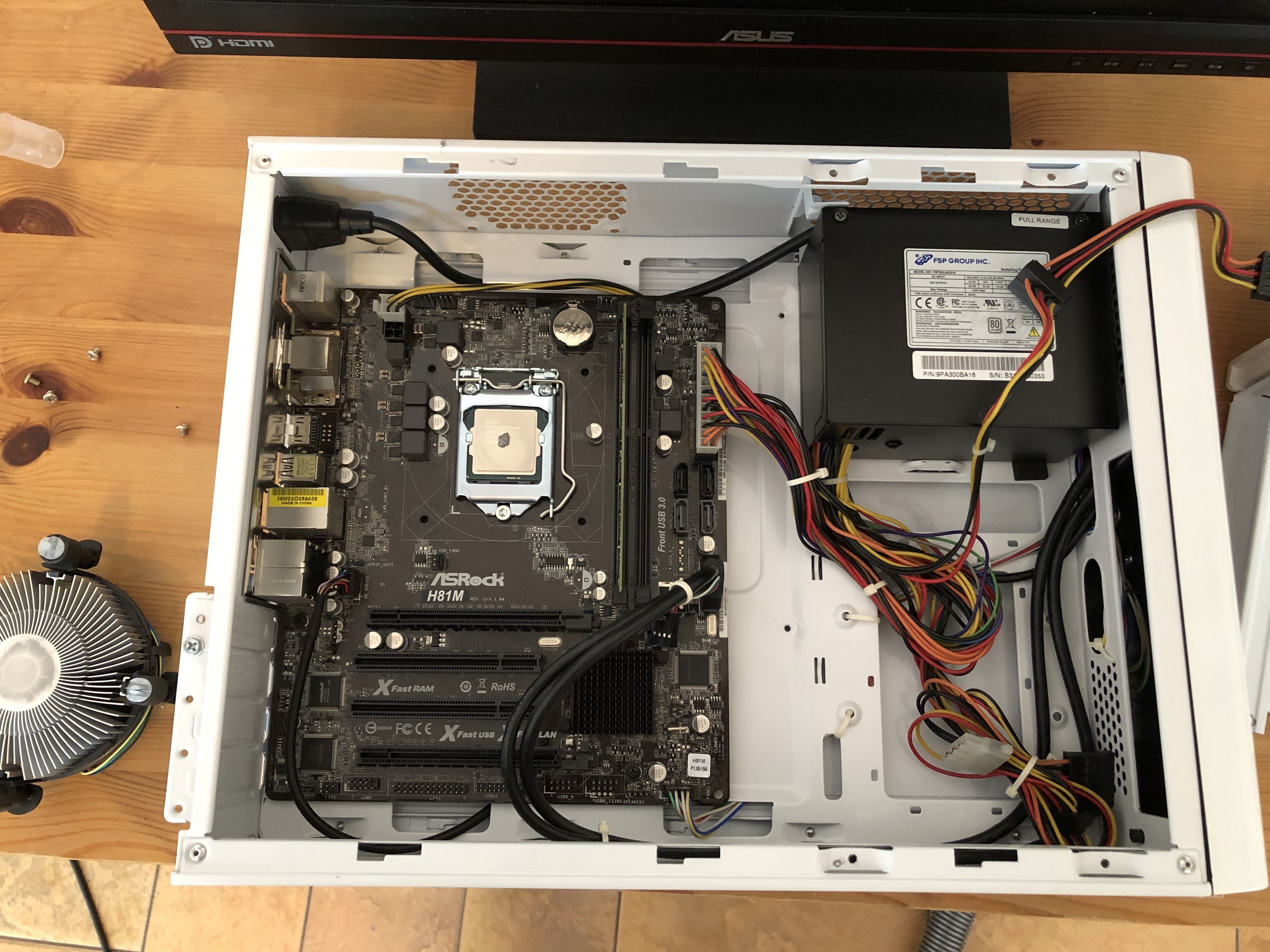

My newest node:

16TB Exos X about to go in there when my SATA controller arrives - unluckily, the board does not seem to support large HDDs…bought it as a mining board years ago, it has paid off multiple times already.

/edit: the cables look much tidier with the HDD/ODD tray installed

Vadim · July 27, 2020, 6:06am

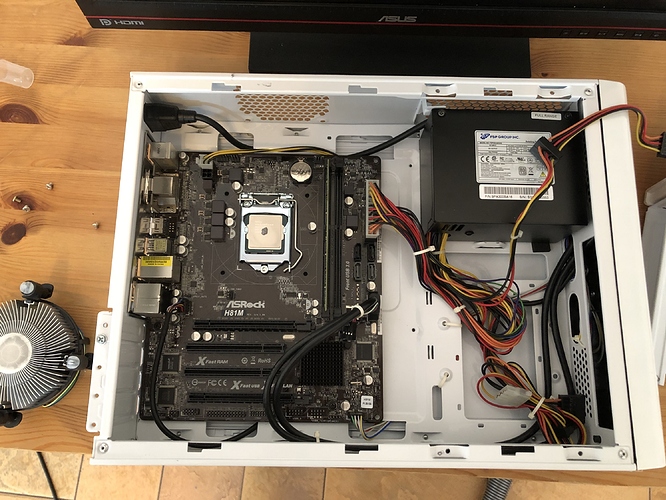

if you need it work silient, dont take this CPU coller on picture.

Vadim · July 27, 2020, 6:17am

Almost all stuff that in previus picture, but takes less space.
